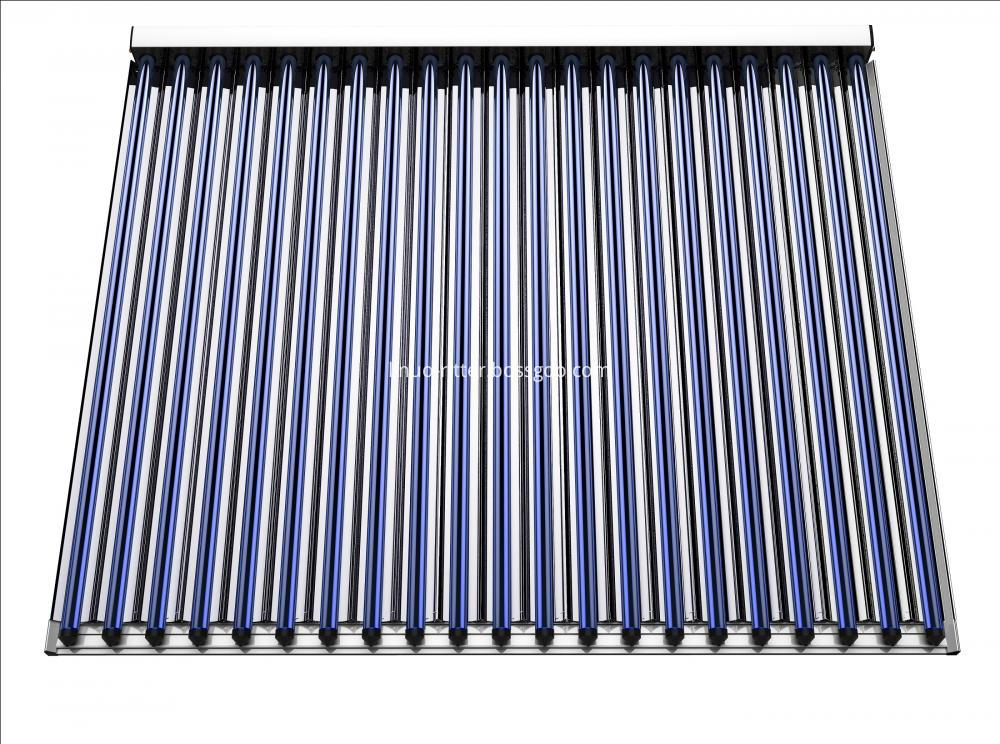

Large-scale CPC U-pipe solar collector

Min. Order: 50 Set/Sets

Basic Info

Model No.: XL1921

Type: Vacuum Solar Collector

Application: Water Heater, Solar Thermal, Air Conditioning System

Pipe Material: Copper

Additional Info

Packaging: 1 set per carton or 10 sets in one big carton

Productivity: 2 million square meters of col

Brand: Linuo Ritter International

Transportation: Ocean

Place of Origin: China

Certificate: Solar Keymark, CE,ISO9001,ISO14001,OHSAS18001

HS Code: 84199010

Port: Qingdao

Product Description


CPC U-pipe solar collector is a new kind of device to collect solar energy. It consists of compound parabolic  concentrator (CPC) which is non-tracing concentrated and vacuum hot-tube collector ( receiver ). CPC features of non-imaging and low concentration. On the basis of the edge-ray principle, CPC can collect incident ray within the specified scope by the ideal concentration ratio onto the receiver. The vacuum  hot-tube collector converts the solar energy to heat energy, and the medium transfers the heat energy to water.


1. Large collecting scale and high efficiency.

2. No water in the vacuum tubes, It mean that even the tube breaks up, no water leaks.

3. Pressurized running

4. Arbitrary placement and moderated temperature collector.

Could be used for high temperature solar thermal applications, heating the water up to 95℃, suitable for the industrial process heating, hotels, hospitals, solar cooling, steam, etc.


The CPC U-pipe solar collector is certified by European Solar Keymark, with satisfactory annual energy yield, meanwhile the heat loss is much less.

The energy yield is comparatively higher in the cloudy and winter days, compared to other types of collectors, due to the equipment of the European CPC reflector, thus reducing the application of the backup traditional energy.


Large scale solar collector up to 5m2, suitable for large-scale solar thermal projects.

Large-scale CPC U-pipe solar collector
