CPC U-pipe solar collector with Advanced German technology

Basic Info

Model No.: CPC1518

Type: Vacuum Solar Collector

Application: Water Heater, Solar Thermal, Air Conditioning System

Pipe Material: Copper

Additional Info

Packaging: 1 set per carton or 10 sets in one big carton

Productivity: 2 million square meters of col

Brand: Linuo Ritter International

Transportation: Ocean

Place of Origin: China

Certificate: Solar Keymark, CE,ISO9001,ISO14001,OHSAS18001

HS Code: 84199010

Port: Qingdao

Product Description

The U type series solar collector are always connected with existing heating supply device, The selective coating on the inner cover of the evacuated tube converts solar energy into heat energy and transfers heat to metal U tube by an aluminum fin. The liquid (usually aglycol water antifreeze mixture) in the metal U tube is heated, and conducts the heat energy to the water inside the storage tank through plate exchanger or internal spiral coils.

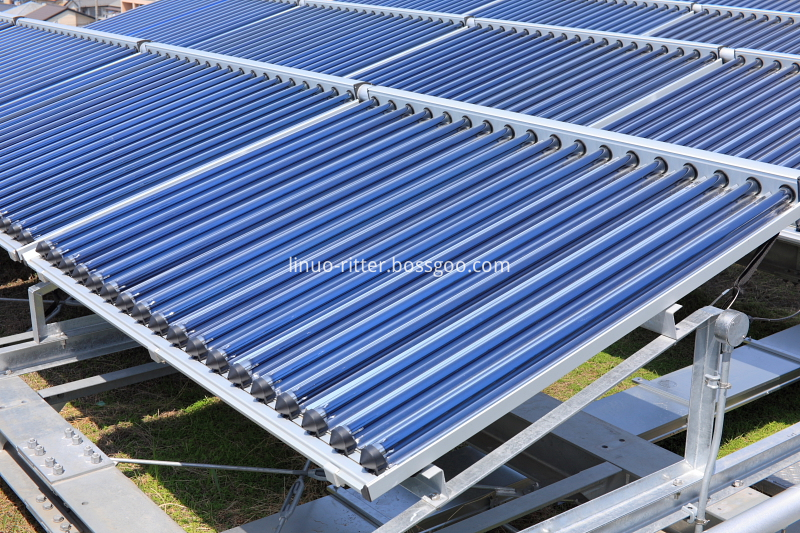

CPC Solar Reflector Collector With U Type Heat Pipe
1. 360°absorber (CPC reflector)
2. high energy yield
3. high price/performance ratio
4. easier and faster modular installation
5. long lifetime and stable service.

Could be used for high temperature solar thermal applications, heating the water up to 130℃, suitable for the industrial process heating, hotels, hospitals, solar cooling, steam, etc.

The CPC U-pipe solar collector is certified by European Solar Keymark, with satisfactory annual energy yield, meanwhile the heat loss is much less.

The energy yield is comparatively higher in the cloudy and winter days, compared to other types of collectors, due to the equipment of the European CPC reflector, thus reducing the application of the backup traditional energy.

Series: CPC1518

Number of evacuated tubes: 18

η0 in relation to aperture(EN 12975): 64.2%

a1 with wind, in relation to aperture area: 0.89W/(m2k)

a2 with wind, in relation to aperture area: 0.001W/(m2k2)

Yield Forecast (location Würzburg, Germany, reference area 3 m2): 651kWh/m2a

Yield Forecast (location Würzburg, Germany, reference area 5 m2): 589kWh/m2a

Collector dimensions (L x H x D): 2080 x 1640 x 100

Gross surface area: 3.41sqm

Aperture area: 3.00sqm

Collector contents: 2.23L

Weight: 54Kg

Max. working overpressure: 10bar

Max. stagnation temperature: 272°C

Connection fitting diameter: φ15 (mm)

Sensor sleeve: φ6 (mm)

Collector material: Al / Cu / glass / silicone / PBT / EPDM / TE

Glass tube material: Borosilicate glass 3.3

Selective absorber coating material: Cu / SS-AIN / AIN

Glass tube (Ø ext./ int./wall thickn./tube lgth.): 47/37/1.6/1500

Colour (aluminium frame profile, anodised): Aluminum grey

Colour (plastic parts): Black

Thermal shock test / ITW test number: 06COL513/1

Hailstone test according to DIN EN 12975-2/TÜV test No. 435/142448

EC type examination: Z-IS-DDK-MUC-07-08-100029919-003

DIN CERTCO registration number: 011-7S1948R

Package dimensions (L x H x D): 2180 x 1675 x 110

Loading Quantity     Qty in 40HC      100
