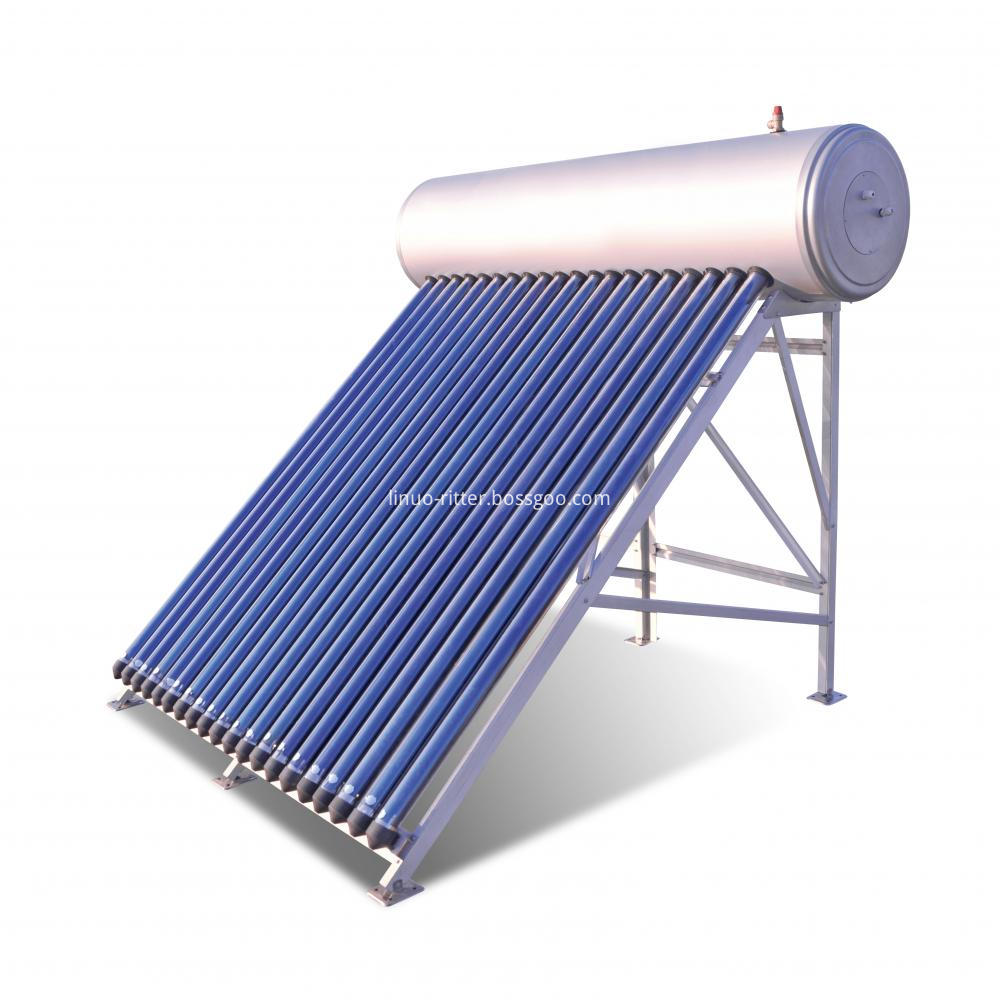

Heat pipe pressurized solar water heater

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Min. Order: 50 Set/Sets
Delivery Time: 15-30 Days

Basic Info

Model No.: HP385 series

Max. Capacity: >200L

Structure: Compact Type

Pressure: Pressurized

Interior Material: Stainless Steel

Collector Components: Glass Vacuum Tube

Certification: CE, ISO9001, CCC

Additional Info

Packaging: carton box for FCL shipment, and plywood box is needed for LCL shipment

Productivity: 500000 sets anually

Brand: Linuo Ritter International

Transportation: Ocean

Place of Origin: China

Certificate: Solar Keymark, CE,ISO9001,ISO14001,OHSAS18001

HS Code: 84191910

Port: Qingdao

Product Description

Evacuated heat pipe technology

1. Evacuated tubes based on the thermos flask principle and consisting of two concentric glass tubes and an evacuated gap to prevent heat loss.
2. Highly selective absorber layer on the inner glass tubes (AI/ALN,) which enables an optimum energy yield.
3. Aluminum heat transfer plate to provide an optimum heat transfer medium system.
4. Copper heat pipes transfer the extracting heat effectively.
5. Rock wool insulation with an aluminum lamination in order to prevent heat loss in the manifold.
6. Compression ring fitting (Ø 22 mm) for flow and return which enable a safe and easy-to-install pipework connections.
7. The most common working fluid is water for ambient temperatures of - 30 °C to an operating temperature to 90 °C.

Advantages and benefits

Easy installation and low maintenance cost of heat pipes and vacuum tubes,

High-quality stainless steel for the inner tank to continuously maintain a good water quality.

Stable operating without tube scaling or pipe explosion risk.

Fast system starting, high energy yield and low heat loss.

Strong capability of anti-freezing that is available for applications in low temperature area.

Pressurized system operating which is suitable for different installation methods.


Series 100L 150L 200L 250L 300L
Series number Unit HP385-100L HP385-150L HP385-200L HP385-250L HP385-300L
General info Tank capacity  (TUV test) L 110 165 225 275 330
Rated operating pressure Mpa 0.6
Gross surface area m2 1.35 2.04 2.74 3.43 4.12
Aperture area m2 1.01 1.51 2.01 2.51 3.02
Dimensions (L x W x H) mm 1286x2005x1365 1686x2005x1365 2086x2005x1365 2486x2005x1365 2886x2005x1365
Water tank Tank dimensions mm φ480x1165 φ480x1560 φ480x1964 φ480x2364 φ480x2764
Tank package dimensions mm 1375x575x555 1775x575x555 2175x575x555 2575x575x555 2975x575x555
Weight  kg 34 44 54 64 74
Inner tank Material
Stainless Steel SUS304-2B
Diameter / thickness mm φ385 / 1.2
Outer tank Material
White painted steel
Diameter / thickness mm φ480 / 0.4
Side cover
Blue painted steel
Insulation Material / thickness mm Polyurethane / 47.5
Tube Number pcs 10 15 20 25 30
Type
φ58 x 1800 mm vacuum tube with thickness of 2.2mm & heat pipe
Tube package dimensions mm 1970 x 330 x 165
Bracket Material
Aluminum alloy
Colour
Blue
Inclination degree  30 degree for flat roof installation
Weight  kg 7 8 11 12 13
Other parts TV valva Temp./ Pressure °C/Mpa 85 / 0.6
Electric heating W Optional/1500w 220V 50Hz
DIN CERTCO registration number
011-7S2715 A
Loading Qty Qty in 20GP/40HC
44/104 36/80 28/64 24/52 16/48

Scope of delivery



-Tank
-Aluminum brackets
-Heat pipe evacuated tubes


Installation types
- Flat roof, pitched roof, min. inclination of 15 degree


The selective coating on the inner cover of the vacuum tubes converts solar energy and transfers heat to the heat pipes by aluminum fins. The liquid in the heat pipe changes into vapor which rises to the condenser. Then the heat passes through the heat exchanger, the water inside of water tank is being heated, and the vapor becomes liquid, returning to the bottom of the heat pipe. This transference of heat creates a continuous circulation as long as the heat pipe vacuum tube collector is heated by sun.



Heat is transferred by liquid to the water tank and heat the water efficiently. In addition, heat pipe vacuum tubes is highly freezing resistance, which ensures higher efficiency in cold areas.



Pressurized water tank ensures high comfort when customer uses hot water, the water flow and water pressure is much higher than compact non-pressurized solar water heater.

 Heat Pipe Solar Water Heater
