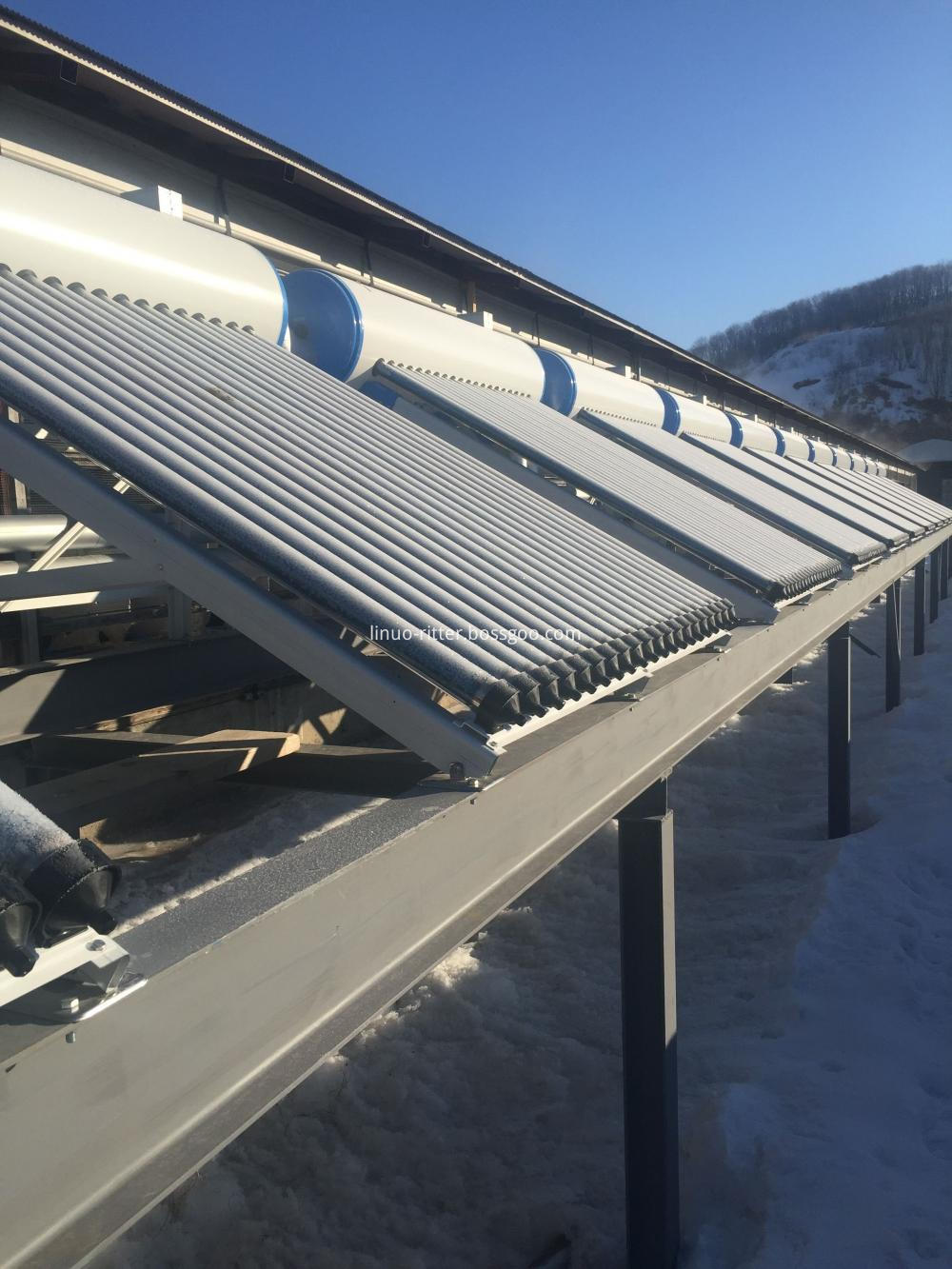

This pressurized system leaves hot water more comfortable than the gravity model due to the pressure from the inlet. The collector of high efficiency tubes convert as much as possible the solar radiation to heat energy because it is round with more surface of absorption and resvetment in internal tube- Between internal and external tube there is an empty layer of sppacio that maintains the heat without pérdoda
Tank capacity: from 100L to 300L
Number of heat pipe tubes: from 10 to 30 units
Inner tank: 1.2mm / SUS304-2B
Outer tank: 0.4 mm / Painted steel
Insulation: high density polyurethane foam
Tubes: high vacuum borosilicate glass between inner and outer tube. Thickness 1.6mm.
Diameter 58mm, length 1800mm, heat pipe in the glass tubes
Support: Aluminum alloy 1.5mm
Angle of the support: 30º
Magnesium bar: included in tank
Electrical resistance: Optional installed or reserved
Digital controller: Optional
Mixed valve: Optional
Safety valve: included.
