Basic Info
Model No.: 58*1800MM
Product Description
1. Factory directly supply with short delivery time .
Go Anuual production is around 7Million
58*1800mm and 58*2100mm size are normal size
|
Absorbance rate after coating (AM1.5) |
α% |
≥89 |
|
Emission rate after coating (80±5 °C) |
α% |
≤ 7 |
|
Stagnation parameter |
m² °C/kW |
≥ 251 |
|
Solar radiance exposure |
MJ/m² |
≤ 3.8 |
|
Average heat loss coefficient |
W/(m²°C) |
≤ 0.56 |
|
Selective coating material |
AL-N/AL, SS-AL-N/Cu |
|
|
Impact resistance |
Steel Ball Test: Steel ball with diameter of 30 mm fall on the evacuated tube vertically from 450 mm height. |
|
|
Vacuum degree |
Pa |
≤ 3X10-3 |
|
Pressure |
Mpa |
0.6 |
|
Transparent (AM1.5) |
≥ 0.86 (ISO9806-1: 1994) |
|
- Key component of solar collector and solar water heater
- Coating material: Al-N/Al or SS-Al/N/Cu.

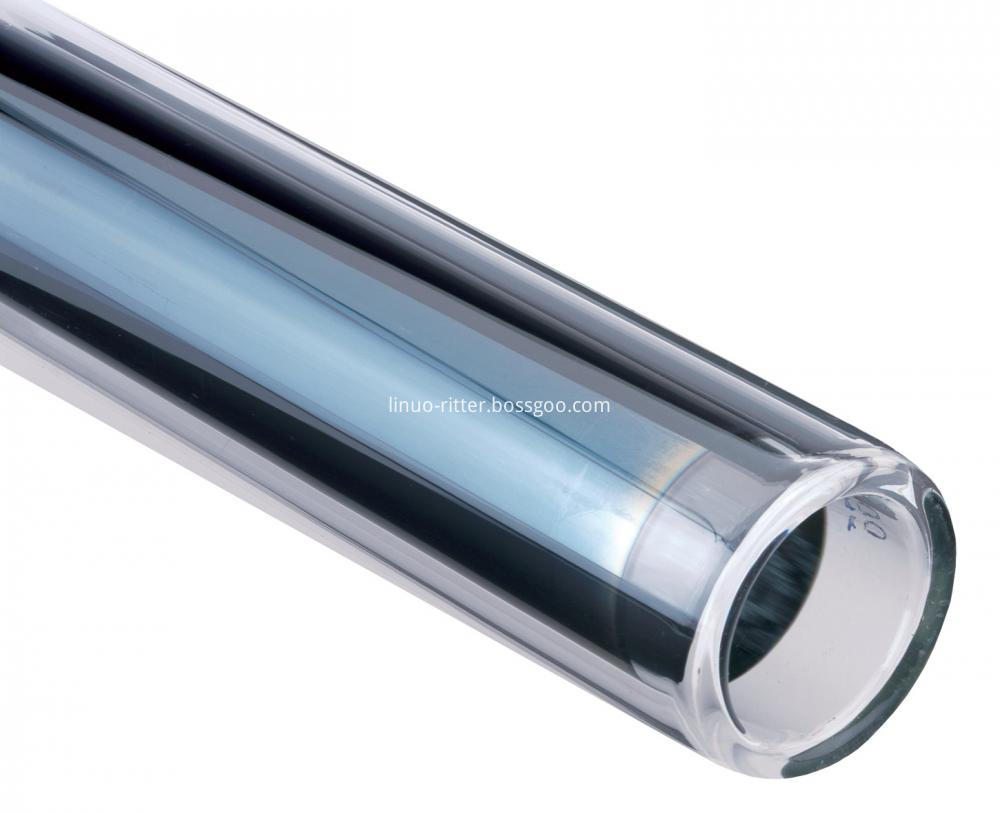

High performance evacuated tubes with selective coating
Linuo Ritter International distributes highly efficient evacuated tubes. We offer high performance evacuated tubes with an improved geometry and performance. The evacuated tubes consists of two concentric glass tubes which are sealed in a semi-circular shape on one side and are joined to one another on the other side. The space between the tubes is evacuated and hermetically sealed (evacuated insulation). To use solar energy, the internal glass tube is coated with an environmentally friendly, highly selective layer on the outside, thus turning it into an absorber. The selective coating is protected in the evacuated space. The aluminum nitride sputter coating used is characterized by an extremely low emission and a high absorption rate.
