Flat plate solar water heater 300L

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 50 Set/Sets
Delivery Time: 14-21 Days

Basic Info

Model No.: FP-300L

Max. Capacity: Other

Structure: Compact Type

Pressure: Pressurized

Interior Material: Stainless Steel

Collector Components: Flat-plate

Certification: CE, ISO9001, Other

Additional Info

Packaging: carton box for FCL shipment, and plywood box is needed for LCL shipment

Productivity: 300000 sets anually

Brand: Linuo Ritter International

Transportation: Ocean

Place of Origin: China

Certificate: CE, ISO9001, ISO14001, OHSAS18001

HS Code: 84191910

Port: Qingdao

Product Description

 Flat plate collectors have the advantage of absorbing not only the energy coming directly from the disc of the sun (beam normal insolation) but also the solar energy that has been diffused into the sky and that is reflected from the ground.

Flat plate thermal collectors are seldom tracked to follow the sun's daily path across the sky, however their fixed mounting usually provides a tilt toward the south to minimize the angle between the sun's rays and the surface at noontime. Tilting flat-plate collectors toward the south provides a higher rate of energy at noontime and more total energy over the entire day.

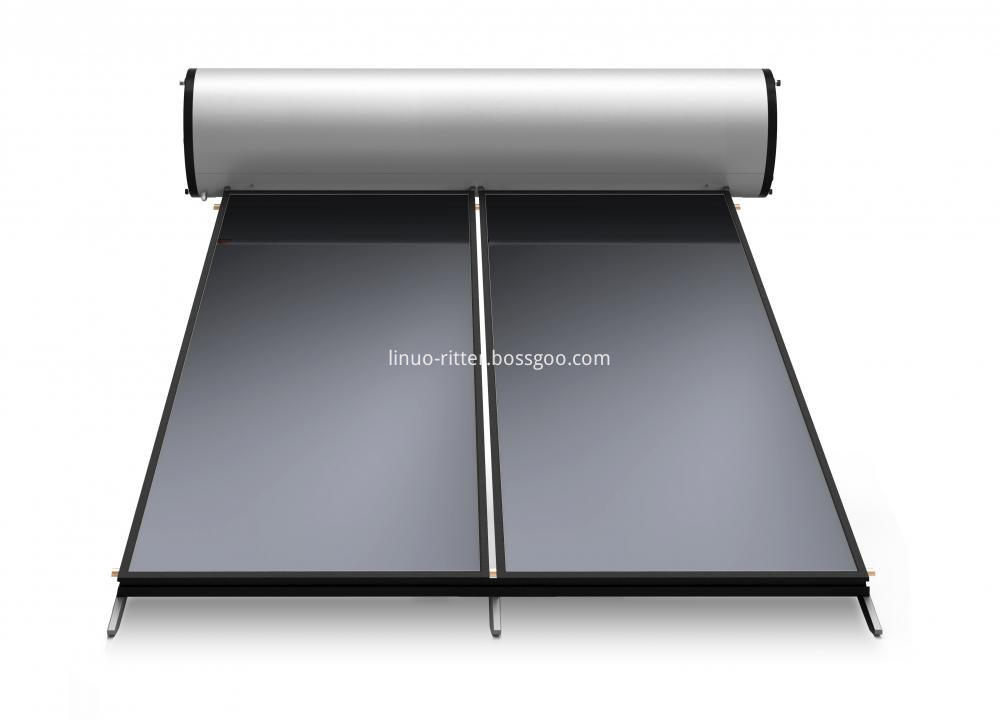

FP Series flat plate solar water heater 300L with 35 degree flexible stands


Flat plate solar water heater is a cost-effective system for residential hot water application. This system is designed according to thermosiphon principle and operating with proportion difference between cold and hot water. The water heated by flat plate collector is held on flexible stands and then transfered to the stainless steel storage tank where the insulation preserves the heat.

The advantage of this flat plate solar water heater is it is a pressurized water heating system, max. with 6 bar pressure, which makes customer having shower with high water pressure and improves the comfortability of showing with solar water heater.



Scope of delivery
-Tank
-Brackets
-Flat plate collectors

Installation types
- Flat roof, pitched roof

Advantages and benefits
- Cost effective solar water heating solution
- Long operating life time over 10 years

Low cost in maintenance and repair requirements.

Short pay-back period

Economic customized solar water heating solution



Performance characteristics
- Higher energy yield and low heat loss due to the high efficient flat plate collectors and PU insulation harmless to ozonosphere

- High-quality stainless steel in the inner tank to continuously maintain a good water quality.


Water heater capacity: 300L

Rated operating pressure: 0.06 Mpa

Gross surface area: 4m2

Aperture area: 3.64m2

Dimensions (L x W x H): 1840*1930*1840mm

Water tank dimensions: 500*1840mm

Tank package dimensions: 2295*575*555mm

Water tank Weight: 46kg

Inner tank Material: Stainless steel SUS316L

Inner tank Diameter / thickness: 420 / 1.2mm

Outer tank Material: Silver gray wiredrawing painted steel

Outer tank Diameter / thickness: 500 / 0.4 mm

Side cover Color: Dark gray or black

Insulation Material / thickness: Polyurethane / 40 mm

Collector Type: 1000 x 2000 mm  Titanium flat plate solar collector

Collector package dimensions: 1080 x 2100 x 110  mm, 1 pcs in one carton.

Bracket Material: Painted galvanized steel

Bracket Colour: black

Bracket Inclination: 35 degree

Bracket Weight: 25 kg

Other optional parts: 1500w electric heater, anode protection rod, PT valve and etc.

Loading qty in 40HQ container: 60 sets


Solar Water Heater Flat Plate Panel
