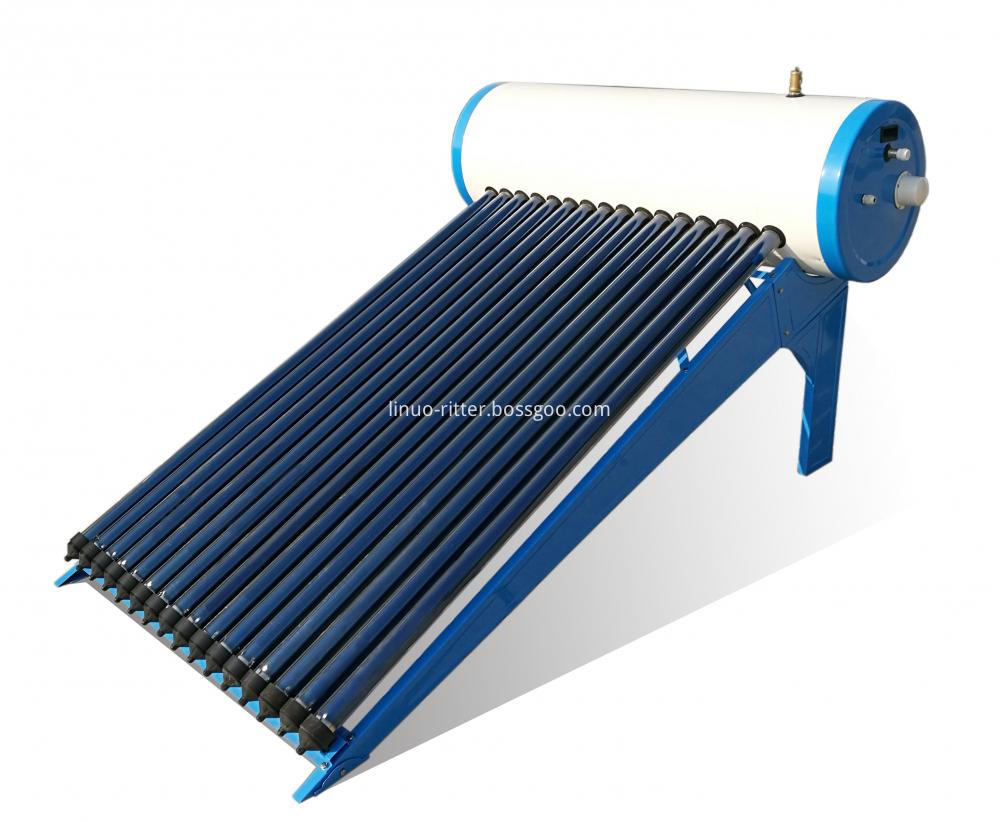

Thermal heater for solar pressurized with heat pipe

Basic Info

Model No.: 200L

Product Description

This solar system heats the water through transporting the heat converted by the coating into the evacuated tubes. Vacuum tube glass keeps the temperature better avoiding cakir loss in the longest possible time. The thicker aluminum base against corrosion and be strong. The insulation layer of polyurethane maintains the heat during the nchie or in cold weather.

Tank capacity: from 100L to 300L

Number of heat pipe tubes: from 10 to 30 units
Inner tank: 1.2mm / SUS304-2B
Outer tank: 0.4 mm / Painted steel
Insulation: high density polyurethane foam

Tubes: high vacuum borosilicate glass between inner and outer tube. Thickness 1.6mm.

Diameter 58mm, length 1800mm, heat pipe in the glass tubes
Support: Aluminum alloy 1.5mm
Angle of the support: 30º
Magnesium bar: included in tank
Electrical resistance: Optional installed or reserved

Digital controller: Optional

Mixed valve: Optional

Safety valve: included.

Heat Pipe
