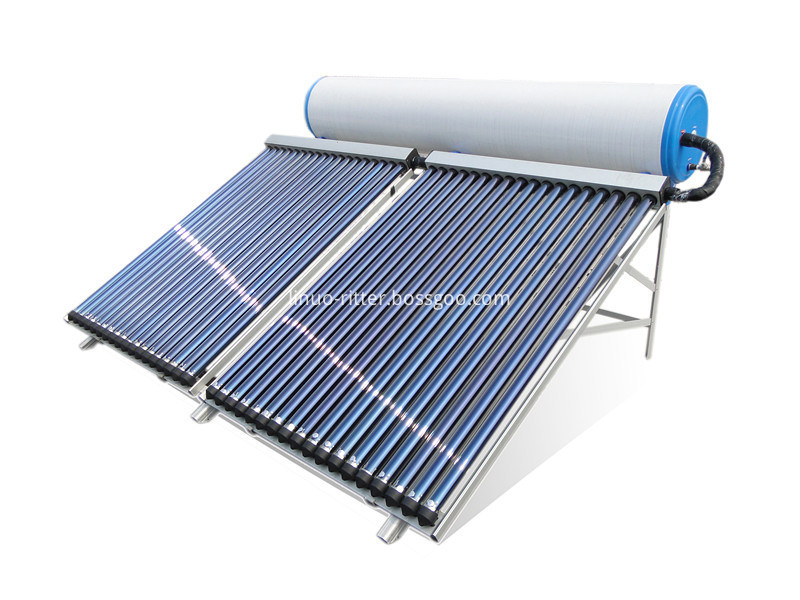

Split High Pressure Heat Pipe Solar Heater

Payment Type: L/C,D/P
Incoterm: FOB,CFR,CIF

Basic Info

Model No.: PS-300L

Max. Capacity: >200L

Structure: Separate Type

Pressure: Pressurized

Interior Material: Copper

Collector Components: Glass Vacuum Tube

Composition: Other

Certification: ISO9001, Other

Additional Info

Brand: Linuo Paradigma

Transportation: Ocean,Land

Place of Origin: China

Port: Qingdao

Product Description

Features description:

The split pressurized solar water heater composes of heat pipe solar collector, storage water tank, workstation system, related accessories and interconnecting pieces, etc.

Workstation System:

1) An integrated system composes of intelligent controller, circulating pump, flow meter, relief valve, pressure gauge, expansion vessel, check valve, etc.

2) More intelligent system operation, when temperature discrepancy between collector medium and water in storage tank reaches set value, the controller shall start the circulation pump automatically for heat exchange, or start auxiliary heating element to assist solar water heating when colder water presents

Heat Pipe Solar Collector:

1) Heat pipe solar collector for thermal collection, with a very quick start and super heat collecting and exchanging efficiency.

2) Closed collector loop, no water or medium flows into vacuum glass tubes, system works well even withdrawal of one or several heat pipe vacuum tubes

3) Efficiency generated about 55% in summer and 42% in winter much more than the normal glass vacuum tube.

4) Modularized collector, arbitrary combination with architectural structure, adaptable to either slope or flat roof structure, almost maintenance free system
Advantages and benefits
- Easy installation, low maintenance cost and elegant appearance.
- The water tank can be matched with both flat type bracket and pitched type bracket.
- Building-integrated solar water heating application with a flexible tank system.
Performance characteristics
- Fast system starting, high energy yield and low heat loss.
- High-quality stainless steel in the inner tank to continuously maintain a good water quality.
- Inner tank is suitble for high pressure conditions.






Series number




Tank capacity




Material inner tank

 material / mm

Stainless steel 304 / 1.2

Insulation of tank

 material / mm

Polyurethane / 48

Dimension outer tank


φ 480 x 1425

 φ 480 x 2700



Aluminum alloy 6063

Type of collector


Heat pipe collector U1818

 Heat pipe collector U1818 x 2

Type of evacuated tubes


3-target tube, φ 58 x 1800 mm & heat pipe

Evacuated heat pipes



 18 x 2

Aperture area




Gross area




Rated operating pressure



Max. testing pressure



Backup electrical heater


 1.5KW, 200V, 50Hz

Heat Pipe Vacuum Evacuate 300L
