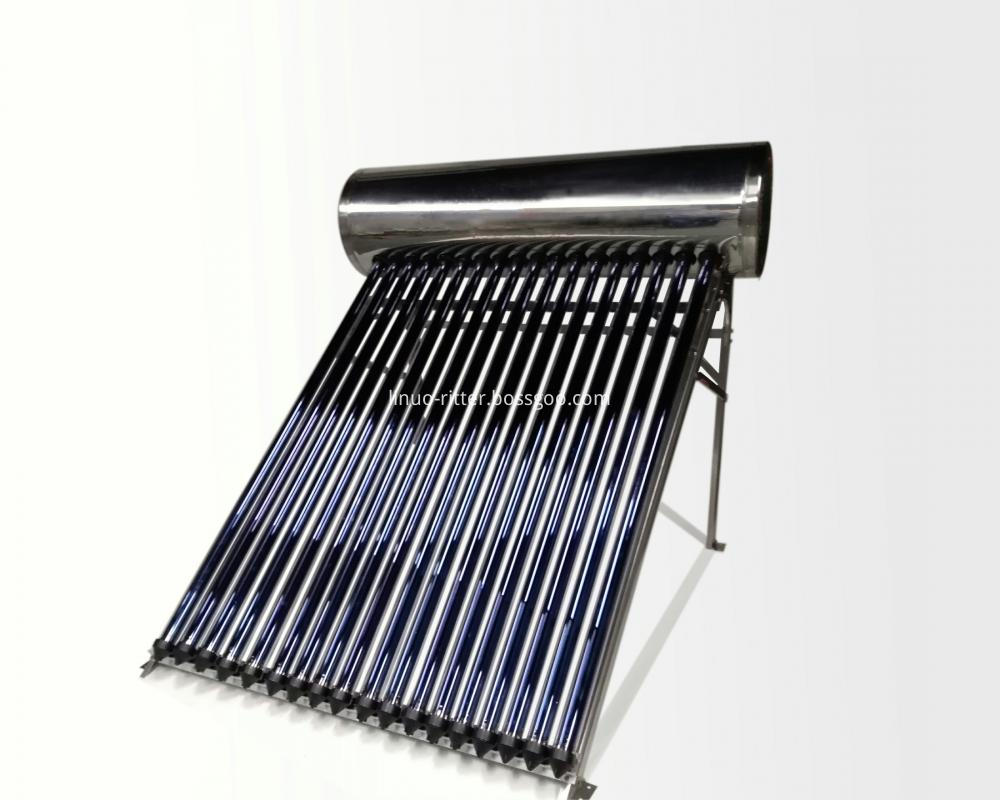

Pressurized solar water heater 300L

Basic Info

Model No.: 300L

Product Description

Sunlight is captured by the coated vacuum tubes which absorb the radiation as heat and conduct it through aluminum fins to the heat pipes. The liquid inside the heat pipes vaporizes as it is heated and the vapor rapidly rises to the condenser (top), releasing the latent heat, and condenses to form a liquid and returns to the pipe bottom where it evaporates once more and repeats the cycle. A manifold on the top of the solar collector allows a working fluid (typically anti-freeze) to absorb the heat from the top of each heat pipe. The working fluid is pumped through the manifold and then through an external heat exchanger which transfers the heat to water in a pressurized storage tank.

For water heating, available with 100, 150, 200 and 300L tank.


Scope of delivery
- Tank,
- stainless steel / galvanized sheet brackets,
- evacuated heat pipes.

Installation types
- Pitched roof, flat roof.

Advantages and benefits
- High-quality stainless steel in the inner tank to continuously maintain a good water quality.
- Long operating life tim but low in maintenance costs and repair requirements.

Performance characteristics
- High energy yield and low heat loss due to the high vacuum of the evacuated tubes and PU insulation HFC245-FA.*
- Inner tank is suitable for high pressure conditions.
Specification


 Series



 HP 100L

HP 150L

HP 200L

HP 300L

 Series number



 HP 100L-SS

HP 150L-SS

 HP 150L-SS

HP 300L-SS

 Tank capacity


 100

150

200

300

 Material inner tank

material / mm

     Stainless Steel SUS304 / 1.2 / Diameter 365

 Material outer tank

material / mm

     White painted steel or stainless steel / 0.31 /Diameter 470

 Side cover

material

    Blue painted steel or stainless steel

 Insulation

material / mm

    Polyurethane / 50

 Bracket

material/ thickness

    Stainless Steel 2B / 1.2mm or Galvanized sheet / 1.5mm

 Bracket inclination

degree

     30

 Type of evacuated tubes

mm

    3-target blue tube, φ 58 x 1800 mm & heat pipe

 Evacuated heat pipes

no

 10

 15

 20

 30

 Rated operating pressure

Mpa

    0.6

 Other parts



     Provision for electrice heating and anod protection
