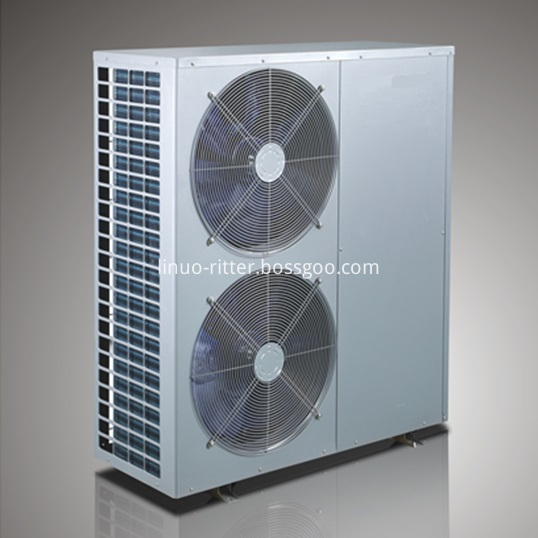

air to water heat pump commercial application

Incoterm: FOB,CFR,CIF
Min. Order: 10 Set/Sets
Delivery Time: 30 Days

Basic Info

Model No.: LRIA/C-18 LRIA/C-22

Additional Info

Packaging: Packed in plywood box.

Productivity: 80000 sets anually

Brand: Linuo Ritter International

Transportation: Ocean

Place of Origin: China

Certificate: Solar Keymark, CE,ISO9001,ISO14001,OHSAS18001

Port: Qingdao

Product Description

Nearly all North American heating professionals are familiar with heat pumps. Also, most know what a geothermal heat pump does, even if they do not design, install or service them. But ask them about air-to-water heat pumps and you are likely to get a confused stare in return. Although most heating professionals likely could figure out what an air-to-water heat pump does, given its description, most have never dealt with this type of hardware.

This is not the case in other markets such as Asia and Europe where a strong market exists. In 2014, the global market for air-to-water heat pumps totaled more than 1.7 million units! The Chinese market alone represented almost 1 million units sold in 2014. The European market was 232,000 units, with France as the No. 1 market, followed by Germany and the United Kingdom. The North American market was a tiny fraction of global sales.

Still, several indicators suggest the air-to-water heat pump market has significant growth potential for North America.


Advantage and benefits

Working air temperature range from -10to 45.

Max. outlet water temperature up to 60

Multiple protections and electric heater backup function.

Automatic controlling system to ensure energy-saving of hot water heating system up to 75%.

Easy installation and maintainenance, stable and reliable system operation



Model
LRIA/C-18 LRIA/C-22
Power supply V 380V~415V/50Hz/3ph
Heating capacity KW 18.5 23
BTU 63140 78498
Input power KW 4.45 5.64
COP
4.16 4.08
Rated current A 8.8 11.2
Fan motor power W 90 90
Fan motor quantity Piece 2 2
Water flow L/h 4100 4900
Hot water output L/h 398 494
Water pressure drop Kpa 43 48
Net weight kg 137.5 147
Gross weight kg 167.5 177.5
Noise db 60 60
Pipe size (internal thread) mm 25 25
Dimension mm 1110*490*1260
Packing dimension mm 1160*500*1410
Refrigerant R410A
Condenser Tube in shell heat exchanger
Expansion valve Danfoss electric expansion valve
Compressor Copeland scroll compressor
Evaporator Hydropilic Aluminium foil and internal thread copper pipe heat exchanger
Controller LCD screen, multi-function
AC contactor EATON
Classification of waterproof IPX4
Electric shock proof grade I
Air Heat Pump Commercial Use
