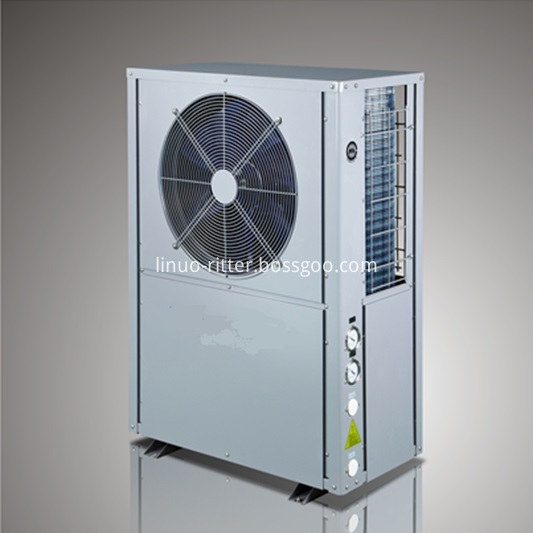

air to water heat pump

Incoterm: FOB,CFR,CIF
Min. Order: 10 Set/Sets
Delivery Time: 30 Days

Basic Info

Model No.: LRIA/C-9, LRIA/C-12, LRIA/C-18

Additional Info

Packaging: Packed in plywood box.

Productivity: 80000 sets anually

Brand: Linuo Ritter International

Transportation: Ocean

Place of Origin: China

Certificate: Solar Keymark, CE,ISO9001,ISO14001,OHSAS18001

Port: Qingdao

Product Description

Advantage and benefits

Working air temperature range from -10to 45.

Max. outlet water temperature up to 60

Multiple protections and electric heater backup function.

Automatic controlling system to ensure energy-saving of hot water heating system up to 75%.


Model
LRIA/C-9 LRIA/C-12 LRIA/C-18
Power supply V 220V~240V/50Hz/1ph
Heating capacity KW 9 13.5 16.5
BTU 30717 46075 56314
Input power KW 2.15 3.28 4.01
COP
4.19 4.12 4.11
Rated current A 10.3 15.7 19.2
Fan motor power W 90 90 90
Fan motor quantity Piece 1 1 2
Water flow L/h 1900 2900 3500
Hot water output L/h 204 297 398
Water pressure drop Kpa 35 38 40
Net weight kg 97.5 97.5 137.5
Gross weight kg 125 125 167.5
Noise db 50 50 60
Pipe size (internal thread) mm 25 25 25
Dimension mm 830*490*1160 1110*490*1260
Packing dimension mm 910*500*1320 1160*500*1410
Refrigerant R410A
Condenser Tube in shell heat exchanger
Expansion valve Danfoss electric expansion valve
Compressor Copeland scroll compressor
Evaporator Hydropilic Aluminium foil and internal thread copper pipe heat exchanger
Controller LCD screen, multi-function
AC contactor EATON
Classification of waterproof IPX4
Electric shock proof grade I
Commercial Air Souce Heat Pump
