Pressurized Heat Pipe Solar Collector

Basic Info

Model No.: R58-1800

Max. Capacity: Other

Structure: Separate Type

Pressure: Pressurized

Interior Material: Copper

Collector Components: Glass Vacuum Tube

Composition: Collector

Certification: ISO9001, Other

Additional Info

Productivity: 2 million square meters of col

Brand: Linuo Ritter International

Transportation: Ocean,Land

Place of Origin: China

Certificate: Solar Keymark, CE, ISO9001, ISO14001, OHSAS18001

HS Code: 84199010

Port: Qingdao

Product Description

Scope of delivery

Fully pre-assembled unit comprising

- 12 - 30 evacuated heat pipes,

- manifold with direct flow heat conduction unit and dry tube connection.

Collectors are packed in individual boxes. In addition, there is a sun protection sheet over the evacuated heat pipe collector.

Installation types

Pitched roof, flat roof, on-wall.

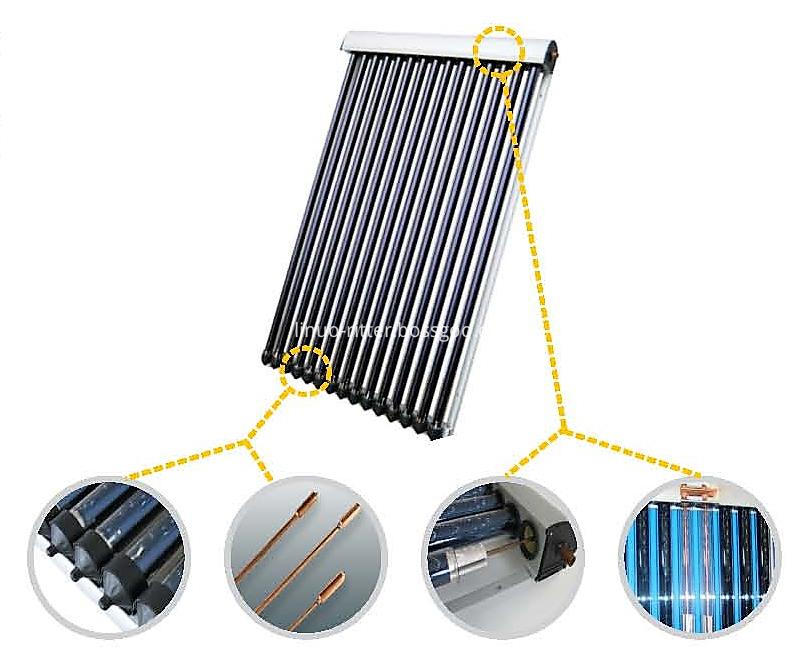

Evacuated heat pipe technology

1. Evacuated tubes based on the thermos flask principle and consisting of two concentric glass tubes and an evacuated gap to prevent heat loss.

2. Highly selective absorber layer on the inner glass tubes (AI/ALN,) which enables an optimum energy yield.

3. Aluminium heat transfer plate to provide an optimum heat transfer medium system.

4. Copper heat pipes transfer the extracting heat effectively.

5. Rock wool insulation with an aluminium lamination in order to prevent heat loss in the manifold.

6. Compression ring fitting (Ø 22 mm) for flow and return which enable a safe and easy-to-install pipework connections.

7. The most common working fluid is waterfor ambient temperatures of - 30 °C to an operating temperature to 90 °C.

Heat pipes made in China

The evacuated heat pipe technology uses the maximum fraction of solar irradiation at minimum ambient temperatures of -30  °C and maximum operating temperatures to 90 °C.

Key benefits:

- High collector efficiency of medium temperature suitable for pressurized and non-pressurized solar thermal applications.

- Due to the rapid heat conductivity evacuated heat pipe collectors are suitable for solar thermal applications in cooler areas with low ambient temperatues.*

- Well-known indestructibility of the evacuated heat pipe collectors according to DIN EN 12975-2.

Recommended application areas:

Hot water generation and heating support.

*in dependence on the respective heat transfer medium.

Advantages and benefits

- Short installation times due to complete pre-assembled collectors.

- Manageable module sizes for a very high performance and a quick and easy installation.

- Highly efficient thermal insulation.

- Flow and return pipes may be filled on the left or the right side of the manifold.

- High flexibility due to the different widths and lengths of the collectors.

- Pressurized and non-pressurized operation.

- Season independent operation depending on the heat transfer medium.

Performance characteristics

- Rapid thermal conductivity.

- High energy yield and low heat loss due to the high vacuum of the evacuated tubes.

- Operating at minimum ambient temperatures of -30 °C to maximum operating temperatures of 90 °C.

- Two loop system to constantly maintain a good water quality and to ensure water on cold days due to the anti-freezing medium in the solar circulation loop and an easy integration of other energy supplies.
