high energy yield flat plate solar collector

Payment Type: L/C,T/T
Min. Order: 50 Set/Sets
Delivery Time: 14-21 Days

Basic Info

Model No.: 2m2 flat plate solar collector, 3m2 flat plate solar collector

Max. Capacity: Other

Structure: Compact Type

Pressure: Pressurized

Interior Material: Stainless Steel

Collector Components: Flat-plate

Certification: CE, ISO9001, Other

Additional Info

Packaging: carton box for FCL shipment, and plywood box is needed for LCL shipment

Productivity: 300000 sets anually

Brand: Linuo Ritter International

Transportation: Ocean

Place of Origin: China

Certificate: CE, ISO9001, ISO14001, OHSAS18001

HS Code: 84191910

Port: Qingdao

Product Description

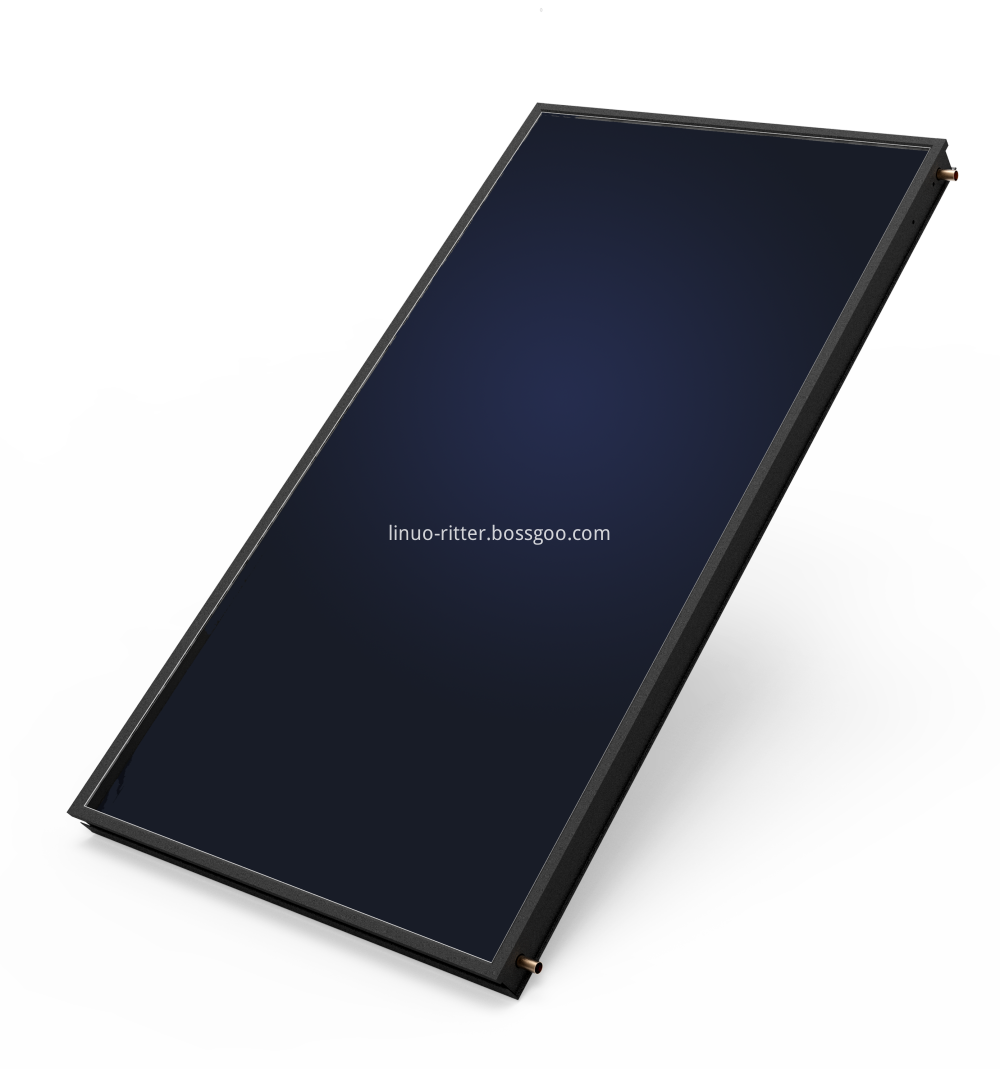

2m2 and 3m2 flat plate solar collector

Riser & Header Pipe

The header and riser pipes are brazed together to form a harp shaped heat exchanger that the solar system heat transfer fluid circulates through.  The absorber sheet is ultrasonically welded to the riser pipes, thus transfers heat to the heat transfer fluid.

Aluminium Frame

high tensile 6063 aluminium alloy


The insulation helps reduce heat loss from the sides and back of the collector. Made from ultra-light weight polyster foam, this material is chosen to greatly reduce the weight of the collector.

Back Sheet

A galvanized sheet seals the back of the panel and adds to the rigidity of the collector.


Toughened glass (glazing) protects the absorber from the outside environment while allowing through >90% of sunlight.


A thin sheet of Aluminium is coated with a highly selective material that is extremely efficient at absorbing sunlight and converting it into usable heat.  The aluminium sheet is ultrasonically welded to the copper riser pipes.

1. Certified with European Solar Keymark

2. high annual energy yield up to 1002kwh for 2m2 flat plate solar collector, guarantee for high government subdidy.

3. 95mm thickness for less heat loss.

4. blue-titanium selective-coating absorber, ensuring the high sunshine absorption rate.

5. annual production capacity of 300,000 sets.

6. high efficiency of 80.5% for 2 sqm flat plate collector.

Series FP2000 FP3000
Collector dimensions (L x H x D) mm 2000 x 1000 x 80 2000 x 1500 x 80
Gross surface area m2 2.00 3.00
Aperture area m2 1.84 2.8
Absorber coating material
Blue Titanium
Absorber coating thickness um 0.3
Absorber sheet material
Absorber sheet thickness  mm 0.3mm
Absorption rate % 92
Emission rate % 5.8
Header tube No. 2
Header tube mm / material φ22 x 0.6 / Copper
Riser tube No. 9 14
Riser tube  mm / material φ10 x 0.45 / Copper
Medium volume  L 1.6 2.5
Cover material
Low iron tempered textured glass
Cover thickness  mm 3.2mm
Cover transmittance  % 90
Insulation material
Insulation thickness mm 50mm
Frame material/ thickness mm Aluminum / 1.0mm
Back plate material/ thickness mm Galvanized aluminum sheet / 0.4mm
Test pressure Mpa 1.2
Rated working pressure Mpa 0.8
New weight Kg 36 54
Collector effiency η0  % 0.805 0.783
Max. stagnation temperature °C 216.9
Heat loss coefficient a1 / k1 W/(m2k) 3.555 3.716
Heat loss coefficient a2/ k2 W/(m2k2) 0.029 0.009
