High-efficient Solar Water Heater 300L

Basic Info

Model No.: LP ECO-300L(30)

Max. Capacity: Other

Structure: Compact Type

Pressure: Unpressurized

Interior Material: Stainless Steel

Collector Components: Glass Vacuum Tube

Certification: CE, ISO9001, Other

Additional Info

Packaging: carton box for FCL shipment, and plywood box is needed for LCL shipment

Productivity: 500000 sets anually

Brand: Linuo Ritter International

Transportation: Ocean

Place of Origin: China

Certificate: CE, ISO9001, ISO14001, OHSAS18001

HS Code: 84191910

Port: Qingdao

Product Description

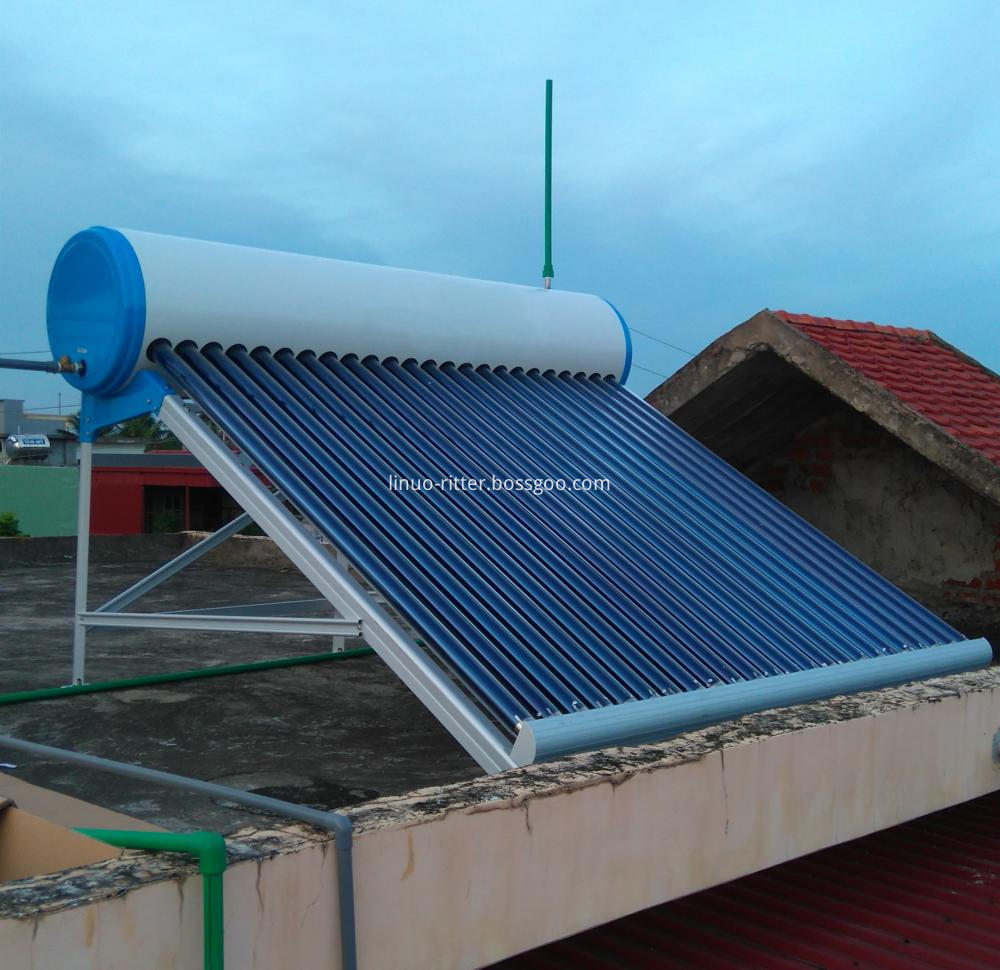

LP ECO Series 30 degree solar water heater 300L with 30 degree aluminium stands

ADVANTAGE
1. Slope roof and flat roof avaliable.
2. Looks more beautiful.
3. Inlet and Outlet hole at the back of the tank,any angel of roof is suitable.
4. Electric heater on the tank cover(side)

FEATURE
Highly efficient absorber of high performance with daily average efficiency over 50%;
Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction.
Withstand pressure of 6 Bar, can be connected directly with city water.
No water inside the evacuated tubes; the solar water heater can still in service even with several tubes breakage;
Highly efficient insulation with polyurethane foam;
Simple structure, easy to assembly and install, diffuse flat plate reflector can be assembled easily with its module structure;
Can be used all year round in the cold climate;
Can be used together with Auxiliary electric boost;
Long service life, can be used as long as 10years.

Performance characteristics
- Higher energy yield and low heat loss due to the high vacuum of the evacuated tubes and PU insulation harmless to ozonosphere

- High-quality stainless steel in the inner tank to continuously maintain a good water quality.

Scope of delivery
-Tank
-Aluminum brackets
-Evacuated tubes

Installation types
- Flat roof, pitched roof

The thermosiphon solar water heater uses the sun to heat the working fluid (mostly water) in the vacuum tubes. The solar collector absorbs solar radiation, and converts the sunlight to heat and transfer it to the water. The heated water naturally rises through the solar collector into the water tank where the cooler water at the bottom of the tank is forced out and descends to the bottom of the collector (thermosiphon circulation). The circulation will be interrupted when there is no solar radiation.

Non-pressurized solar water heater is a cost-effective system for residential hot water application. this system is designed according to thermosiphon principle and operating with proportion difference between cold and hot water. The water heated by vacuum tubes is held in the stainless steel storage tank where the insulation preserves the heat.

Water heater capacity: 300L

Rated operating pressure: 0.06 Mpa

Gross surface area: 4.06m2

Aperture area: 2.7 m2

Dimensions (L x W x H):2510*1976*1312mm

Water tank dimensions: 450*2510mm

Tank package dimensions: 2580*550*490mm

Water tank Weight: 34kg

Inner tank Material: Stainless steel SUS304-2B

Inner tank Diameter / thickness: 350 / 0.4mm

Outer tank Material: White painted steel

Outer tank Diameter / thickness: 450 / 0.4 mm

Side cover Color: Blue

Insulation Material / thickness: Polyurethane / 50 mm

Tube Number 30 pcs

Tube Type: φ58 x 1800 mm three-target vacuum tube

Tube package dimensions: 1870 x 330 x 165  mm, 10 pcs in one carton.

Bracket Material: Aluminum alloy

Bracket Colour: Silver white

Bracket Inclination: 30 degree

Bracket Weight: 11 kg

Other optional parts: Electric heating provision hole, anode protection rod, etc.

Loading qty in 40HQ container: 60 sets
