High efficient solar water heater 150L

Basic Info

Model No.: LP ECO-150L(30)

Max. Capacity: Other

Structure: Compact Type

Pressure: Unpressurized

Interior Material: Stainless Steel

Collector Components: Glass Vacuum Tube

Certification: CE, ISO9001, Other

Additional Info

Packaging: carton box for FCL shipment, and plywood box is needed for LCL shipment

Productivity: 300000 sets anually

Brand: Linuo Ritter International

Transportation: Ocean

Place of Origin: China

Certificate: CE, ISO9001, ISO14001, OHSAS18001

HS Code: 84191910

Port: Qingdao

Product Description

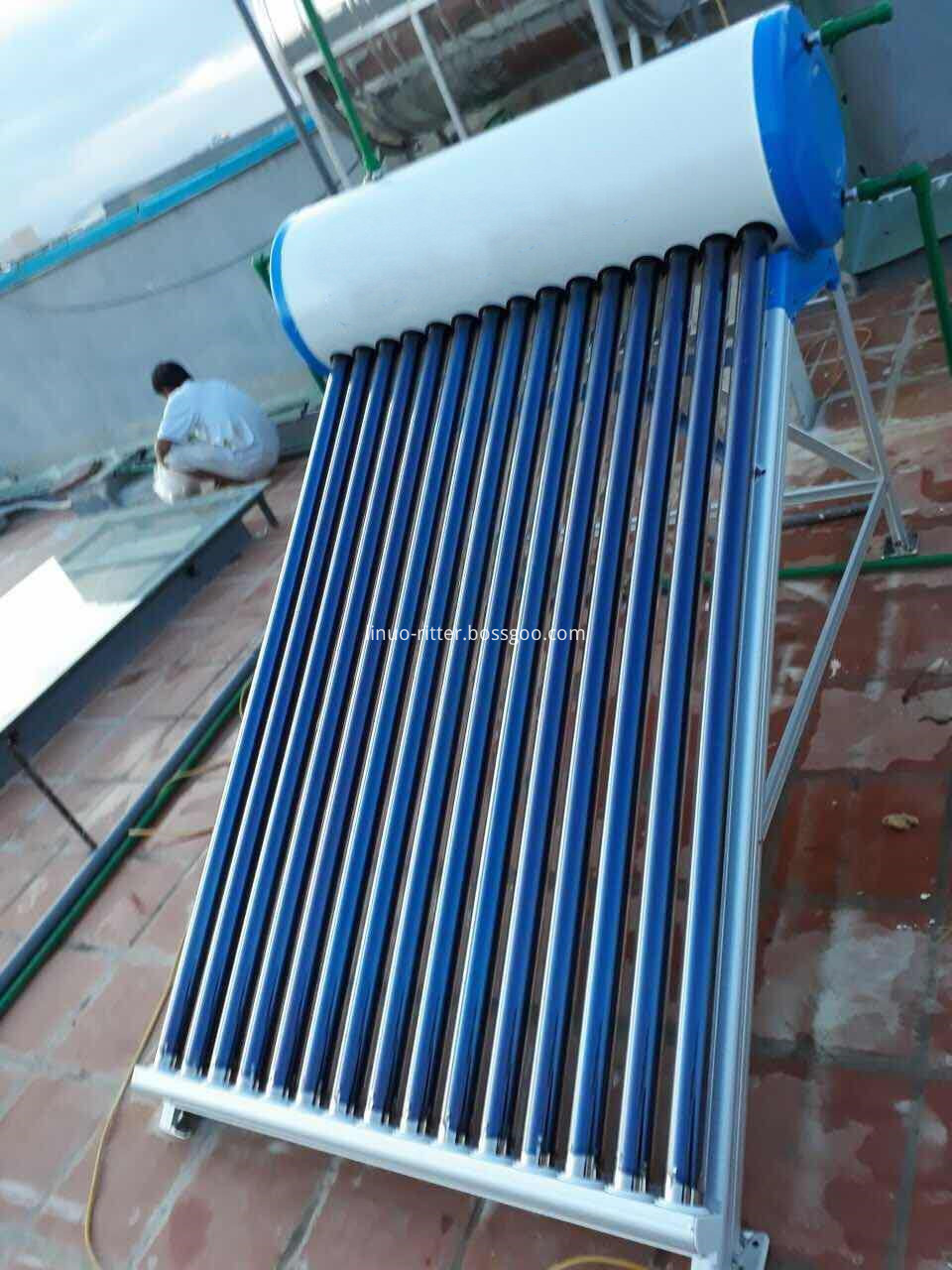

LP Series ECO solar water heater 150L with 30 degree aluminium stands

Non-pressurized solar water heater is a cost-effective system for residential hot water application. this system is designed according to thermosiphon principle and operating with proportion difference between cold and hot water. The water heated by vacuum tubes is held in the stainless steel storage tank where the insulation preserves the heat.

Scope of delivery
-Tank
-Aluminum brackets
-Evacuated tubes

Installation types
- Flat roof, pitched roof

Advantages and benefits
- Cost effective solar water heating solution
- Long operating life time over 10 years

-   Low cost in maintenance and repair requirements.

-   Short amortization rate

-   Economic customized solar water heating solution

Performance characteristics
- Higher energy yield and low heat loss due to the high vacuum of the evacuated tubes and PU insulation harmless to ozonosphere

- High-quality stainless steel in the inner tank to continuously maintain a good water quality.

Water heater capacity: 150L

Rated operating pressure: 0.06 Mpa

Gross surface area: 2.01m2

Aperture area: 1.37 m2

Dimensions (L x W x H):1370*1976*1312mm

Water tank dimensions: 450*1370mm

Tank package dimensions: 1440*550*490mm

Water tank Weight: 20kg

Inner tank Material: Stainless steel SUS304-2B

Inner tank Diameter / thickness: 350 / 0.4mm

Outer tank Material: White painted steel

Outer tank Diameter / thickness: 450 / 0.4 mm

Side cover Color: Blue

Insulation Material / thickness: Polyurethane / 50 mm

Tube Number 15 pcs

Tube Type: φ58 x 1800 mm three-target vacuum tube

Tube package dimensions: 1870 x 330 x 165  mm, 10 pcs in one carton.

Bracket Material: Aluminum alloy

Bracket Colour: Silver white

Bracket Inclination: 30 degree

Bracket Weight: 6.5 kg

Other optional parts: Electric heating provision hole, anode protection rod, etc.

Loading qty in 40HQ container: 112 sets
