|Min. Order:||50 Set/Sets|
|Delivery Time:||15-30 Days|
Model No.: HP420-200L
Max. Capacity: 100-200L
Structure: Compact Type
Interior Material: Stainless Steel
Collector Components: Glass Vacuum Tube
Certification: CE, ISO9001, CCC
Packaging: carton box for FCL shipment, and plywood box is needed for LCL shipment
Productivity: 500000 sets anually
Brand: Linuo Ritter International
Place of Origin: China
Certificate: Solar Keymark, CE,ISO9001,ISO14001,OHSAS18001
HS Code: 84191910
Scope of delivery
-Heat pipe evacuated tubes

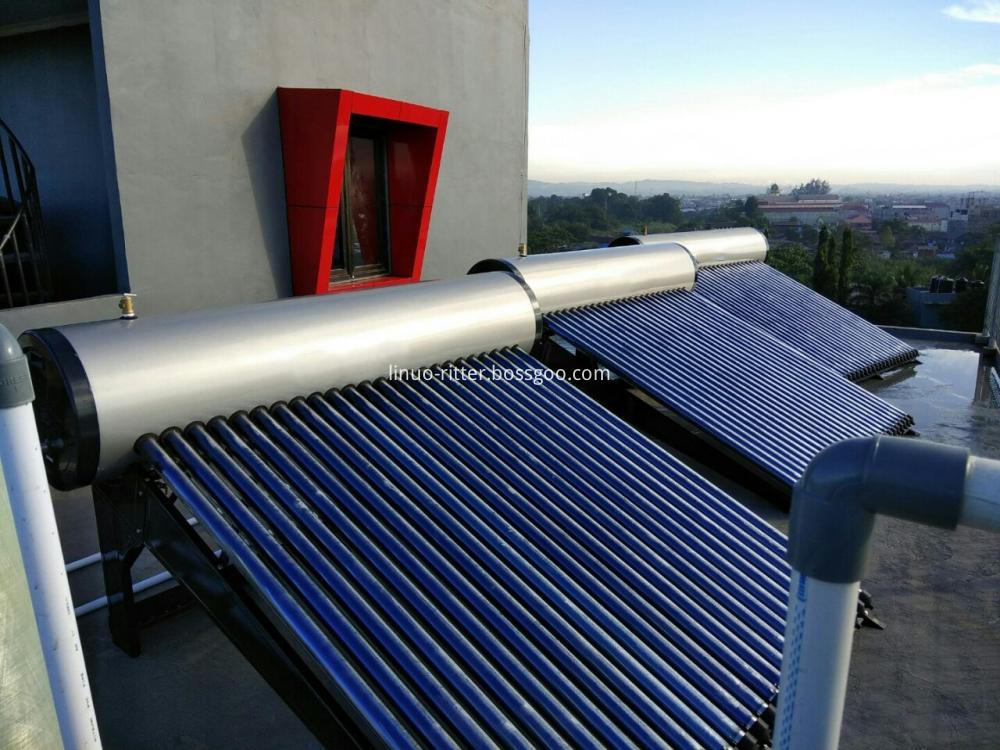

- Flat roof, pitched roof, min. inclination of 15 degree
Water tank capacity: 100L
Rated operating pressure: 0.06 Mpa
Gross surface area: 1.56m2
Aperture area: 1.21m2
Dimensions (L x W x H): 930x1875x1390mm
Water tank dimensions: φ500 x 030 mm
Tank package dimensions: 1075x575x555mm
Water tank Weight: 26kg
Inner tank Material: Stainless steel SUS304-2B
Inner tank Diameter / thickness: 420 / 1.2 mm
Outer tank Material: White painted steel
Outer tank Diameter / thickness: 500 / 0.4 mm
Side cover Color: Blue
Insulation Material / thickness: Polyurethane / 40 mm
Tube Number: 0pcs
Tube Type: φ58 x 1800 mm three-target vacuum tube and heat pipes
Tube package dimensions: 1970 x 330 x 165 mm, 10 pcs in one carton.
Bracket Material: Aluminum alloy or flexible painted galvanized steel
Bracket Colour: Silver white or blue
Bracket Inclination: 30 degree
Bracket Weight: 6kg
TP valve: 85 / 0.6 °C/Mpa
Other parts: Electric heating rod, magnesium rod are included.
Advantages and benefits of pressurized heat pipe solar water heater for customers:
Easy installation and low maintenance cost of heat pipes and vacuum tubes,
High-quality stainless steel for the inner tank to continuously maintain a good water quality.
Stable operating without tube scaling or pipe explosion risk.
Fast system starting, high energy yield and low heat loss.
Strong capability of anti-freezing that is available for applications in low temperature area.
Pressurized system operating which is suitable for different installation methods.
The selective coating on the inner cover of the vacuum tubes converts solar energy and transfers heat to the heat pipes by aluminum fins. The liquid in the heat pipe changes into vapor which rises to the condenser. Then the heat passes through the heat exchanger, the water inside of water tank is being heated, and the vapor becomes liquid, returning to the bottom of the heat pipe. This transference of heat creates a continuous circulation as long as the heat pipe vacuum tube collector is heated by sun.
Pressurized water tank ensures high comfort when customer uses hot water, the water flow and water pressure is much higher than compact non-pressurized solar water heater, customer will feel comfortable when he enjoys the hot water showering.
Heat is transferred by liquid to the water tank and heat the water efficiently. In addition, heat pipe vacuum tubes is highly freezing resistance, which ensures higher efficiency in cold areas.
Customized products are avaliable on request, please contact us for details.
