Basic Info
Model No.: CPC-U 1506
Type: Vacuum Solar Collector
Application: Water Heater
Pipe Material: Copper
Additional Info
Productivity: 2 million square meters of col
Brand: Linuo Ritter International
Transportation: Ocean,Land
Place of Origin: China
Certificate: Solar Keymark, CE,ISO9001,ISO14001,OHSAS18001
HS Code: 84191910
Port: Qingdao

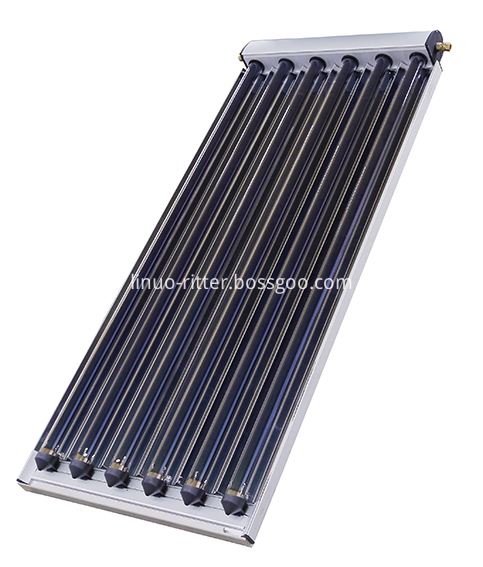

Product Description
For water, space and process heating and solar cooling.
Specification
| Series | CPC1506 | |
| Number of evacuated tubes |
|
6 |
| η0 in relation to aperture, EN 12975 | % | 64.2 |
| a1 with wind, in relation to aperture area | W/(m2k) | 0.89 |
| a2 with wind, in relation to aperture area | W/(m2k2) | 0.001 |
| Yield Forecast (location Würzburg, Germany, reference area 3 m2) | kWh/m2a | 651 |
| Yield Forecast (location Würzburg, Germany, reference area 5 m2) | kWh/m2a | 589 |
| Collector dimensions (L x H x D) | mm | 702 x 1640 x 100 |
| Gross surface area |
|
1.15 |
| Aperture area | m2 | 1.00 |
| Collector contents | l | 0.74 |
| Weight | kg | 19 |
| Max. working overpressure | bar | 10 |
| Max. stagnation temperature | °C | 272 |
| Connection fitting diameter | φ (mm) | 15 |
| Sensor sleeve | φ (mm) | 6 |
| Collector material |
|
Al / Cu / glass / silicone / PBT / EPDM / TE |
| Glass tube material |
|
Borosilicate glass 3.3 |
| Selective absorber coating material |
|
Cu / SS-AIN / AIN |
| Glass tube (Ø ext./ int./wall thickn./tube lgth.) |
|
47/37/1.6/1500 |
| Colour (aluminium frame profile, anodised) |
|
Aluminum grey |
| Colour (plastic parts) |
|
Black |
| Thermal shock test / ITW test number |
|
06COL513/1 |
| Hailstone test according to DIN EN 12975-2/TÜV test No. | 435/142448 | |
| EC type examination |
|
Z-IS-DDK-MUC-07-08-100029919-003 |
| DIN CERTCO registration number |
|
011-7S1948R |
| Package dimensions (L x H x D) | mm | 800 x 1675 x 110 |
| Loading Quantity | Qty in 40HC | 252 |
Installation types
- Pitched roof, flat roof, horizontal
Scope of Delivery
Fully pre-assembled unit comprising
- evacuated tubes based on the thermos
flask principle
- manifold with direct flow heat conduction
unit and dry tube connection
Collectors are packed in individual boxes. In
addition, there is a sun protection sheet over the evacuated tubes.
Advantages and benefits
- Specially developed for applications that require horizontally mounting.
- Short installation times due to complete pre-assembled collectors.
- Simple and reliable connection technology in order to extend several collectors side by side through pre-assembled screw connections. Further tubing and an extensive thermal insulation is not necessary
- Integrated return pipe and highly efficient thermal insulation.
- Manageable module sizes for a very high performance and a quick and easy installation.
- Flow and return pipes may be fitted on the left or the right side of the manifold.
- High flexibility due to the different widths and lengths of the collectors.
- Quick and easy exchange of the evacuated tubes without using any tools.
Performance characteristics
- Low pressure loss allows several modules to be connected in series
- Minimum of soldering points ensures a high leakage safety
- Well-known indestructibility of Ritter Solar tubes confirmed by the hailstone test DIN EN 12975-2
- High energy yield in the transitional period and winter
- In wintery conditions with a 400 W/m² irradiation and 0 °C air temperature at a temperature of 20 °C, Ritter Solar evacuated tube collectors already have a higher energy yield than flat collectors.
- Extremely low heat loss due to the high vacuum.
- Outstanding design.
